PERFORMANCE RANGE:
- Flow rate up to 40l/min. (2.4 m3/h)
- Head up to 140m
OPERATING LIMITS
- Fluid temperature up to 40℃
- Maximum operating depth 40m
STRUCTURAL CHARACTERISTICS
- Stainless steel pump body
- Brass discharge head
- Stainless steel mechanical seal (graphite to ceramic)
- Brass impeller with radial peripheral blades
- Stainless steel shaft
- Protection IP68
- With thermal overload protector
| MSK/1 | 1.0HP |
| MSK/2 | 1.5HP |
| MSK/3 | 2.0HP |

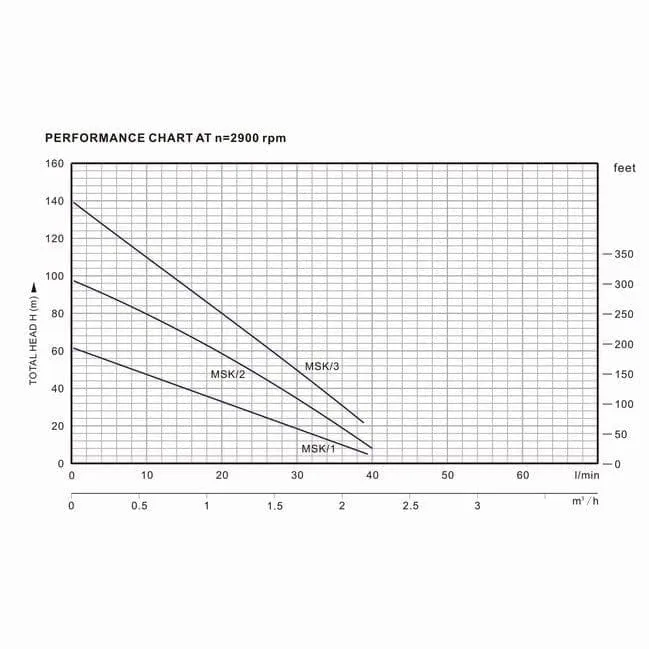

FLOW RATE Q
| PUMP MODEL | POWER | Q m3/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.4 | ||
| Single phase | Three phase | KW | HP | L/MIN | 0 | 8.3 | 16.6 | 25 | 33.3 | 40 |
| MSK/1 | MSK/1 | 0.75 | 1 | H (m) | 61 | 50 | 38 | 23 | 10 | 4 |
| MSK/2 | MSK/2 | 1.1 | 1.5 | 99 | 82 | 62 | 44 | 24 | 8 | |
| MSK/3 | MSK/3 | 1.5 | 2 | 140 | 115 | 90 | 66 | 42 | 20 | |
H=TOTAL HEAD IN METERS. Q=FLOW RATE
Upgrade your water pumping solutions with the versatile LuckyPro Short Submersible Pump. Choose from three options - the 1HP MSK/1, 1.5HP MSK/2, and 2HP MSK/3, designed to efficiently handle a wide range of submersible pumping tasks. These pumps are ideal for residential, commercial, and light industrial use, ensuring dependable and robust performance for your water transfer needs.
