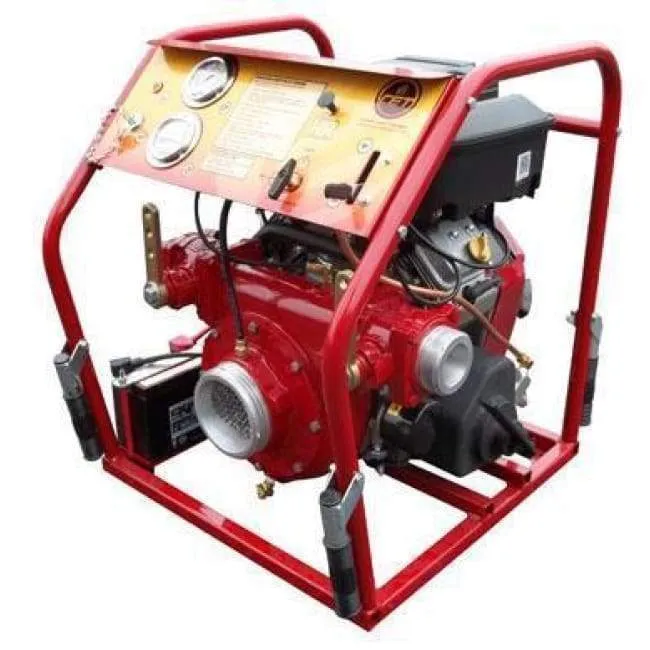

ENGINE SPECIFICATIONS
Vanguard, model 350000, air cooled engine
V-Twin cylinder, 4-stroke gasoline engine
Electric start with recoil start as backup
2.25 Gallons (8.5 l) integrated fuel tank
INCLUDED ACCESSORIES
Full control panel with pressure gauge, vacuum gauge, throttle, choke, starter, panel light and priming valve
16 Amps alternator
Low oil alert
12-V battery
PUMP UNIT SPECIFICATIONS
C.E.T. single stage centrifugal pump
Pump body made from high resistance aluminum alloy
Bronze impeller
Mechanical shaft seal
Exhaust priming system, guaranteed up to 20Õ (6 meter) lift
Two 2 1Ú2Ó (65 mm) delivery outlets with Fire Type swing-out valve
One 4Ó (100 mm) suction inlet
Dimensions: Length: 23.5Ó(575 mm); Width: 22Ó (539 mm); Height: 25.5Ó (625 mm)
Weight: 189 lbs (86 kg)

371 GPM @ 25 PSI
250 GPM @ 50 PSI
150 GPM @ 75 PSI
90 GPM @ 100 PSI
15 GPM @ 125 PSI
